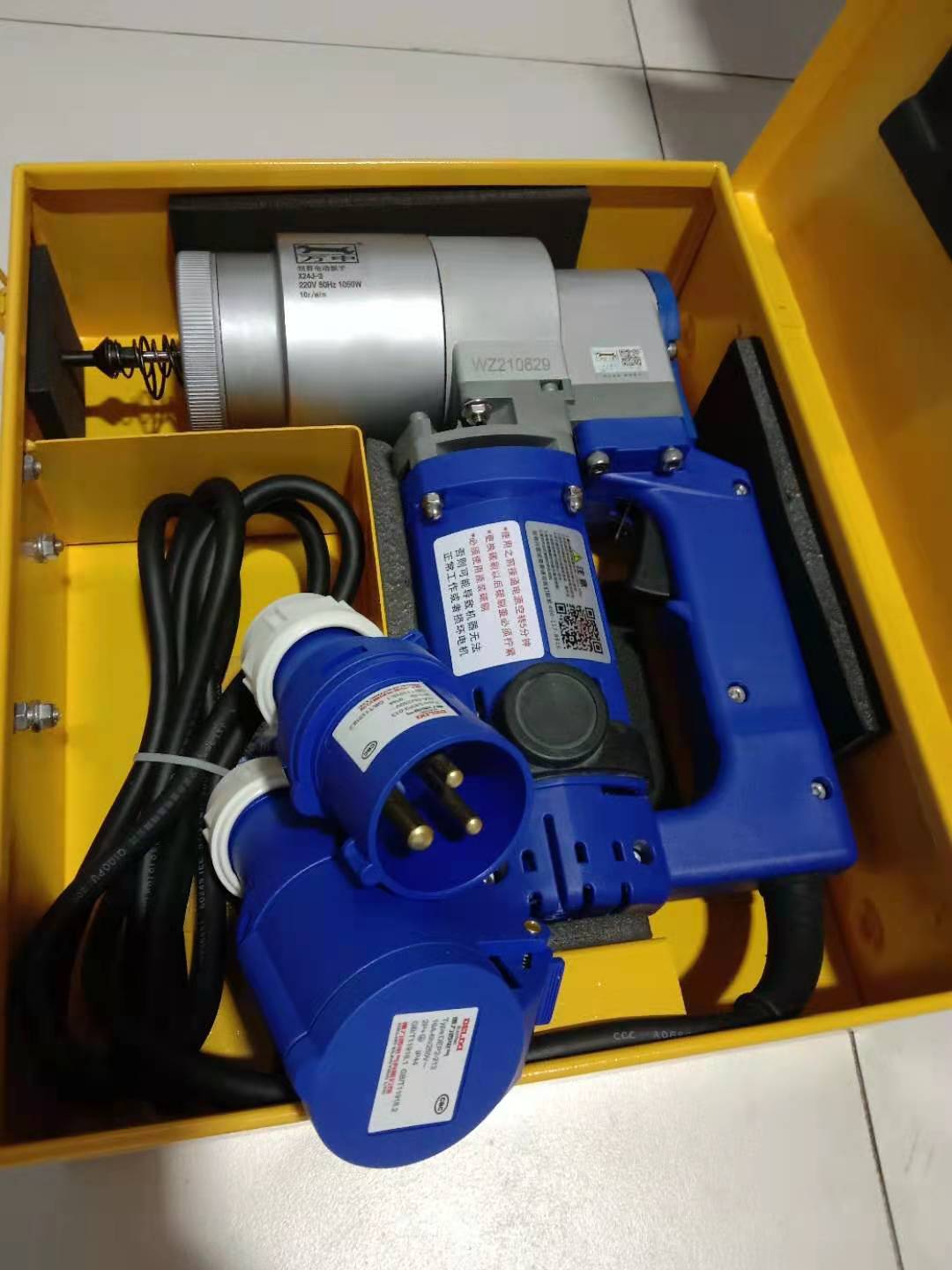

固定力矩電動扳手產品特點:
Fixed torque electric wrench product features:
數字力矩電動扳手結構新穎、體積小、重量輕、可靠性好。由于采用靜扭結構，操作平穩，無振動，無沖擊，噪音低，操作人員不受反向扭矩的影響，所以勞動強度低。額定電壓220v50/60hz精度±5%
The digital torque electric wrench has the advantages of novel structure, small volume, light weight and good reliability. Due to the static torsion structure, the operation is stable, no vibration, no impact, low noise, and the operators are not affected by the reverse torque, so the labor intensity is low. Rated voltage 220V50 / 60Hz, accuracy ± 5%
固定力矩電動扳手應用行業:
Fixed torque electric wrench application industry:
固定力矩電動扳手廣泛應用于螺栓焊接結構橋梁、廠房、鐵塔、化工、冶金、發電設備的安裝。大型機械、起重設備和車輛的裝配作業，對螺釘和螺釘緊固件的扭矩和軸向拉力都有嚴格的要求。
Fixed torque electric wrenches are widely used in the installation of bolted welded bridges, factories, iron towers, chemical industry, metallurgy and power generation equipment. The assembly of large machinery, lifting equipment and vehicles has strict requirements on the torque and axial tension of screws and screw fasteners.
固定力矩電動扳手螺栓緊固操作
Fixing torque electric wrench bolt tightening operation
將扭矩電動扳手1中的螺栓緊固操作固定，安裝反力支撐，擰緊螺釘。啟動主機，使方頭銷孔與反力支撐孔相對應，然后安裝扳手座，插入銷并與橡膠圈固定。
Tighten the bolts in the torque electric wrench 1, install the reaction support, and tighten the screws. Start the main engine so that the square head pin hole corresponds to the reaction support hole, then install the wrench seat, insert the pin and fix it with the rubber ring.
2.將控制器的扭矩旋鈕調整到所需的扭矩值，將主機前后開關調到正位，將扳手安裝在螺紋接頭的六面。
2. Adjust the torque knob of the controller to the required torque value, adjust the front and rear switches of the host to the positive position, and install the wrench on the six sides of the threaded joint.
3.按下電源開關，扳手就會啟動。當反力支座的力矩臂在緊固支座上時(支點可以是相鄰的螺栓，也可以是可以制造該支點的其他位置)，螺栓開始緊固。當螺栓扭矩達到預定扭矩時，扳手自動停止，緊固完成，松開電源開關，擰緊下一個螺栓。
3. Press the power switch and the wrench will start. When the torque arm of the reaction support is on the fastening support (the fulcrum can be an adjacent bolt or other position where the fulcrum can be manufactured), the bolt begins to fasten. When the bolt torque reaches the predetermined torque, the wrench will automatically stop, the tightening is completed, loosen the power switch and tighten the next bolt.
4.扳手自動停止后，支架的轉矩臂自動脫離支點，利用反力支架的彈性變形力將扳手取下。如果轉矩臂不能從支點上拆下，則可以翻轉正反轉開關，拆下電源開關扳手。
4. After the wrench stops automatically, the torque arm of the support will automatically disengage from the fulcrum, and the wrench will be removed by using the elastic deformation force of the reaction support. If the torque arm cannot be removed from the fulcrum, turn over the forward and reverse switch and remove the power switch wrench.
